Complete acrylic polyurethane basecoat mixing system – 56 tinters including 15 pearlescent/iridescent and 6 xirallic – access to 100,000+ colour formulations.
Trade supply, so prices are not published. Add everything you need, send the list, and we reply with pricing and availability within one working day.
No data sheet listed? Ask us for it and we will send the current version.

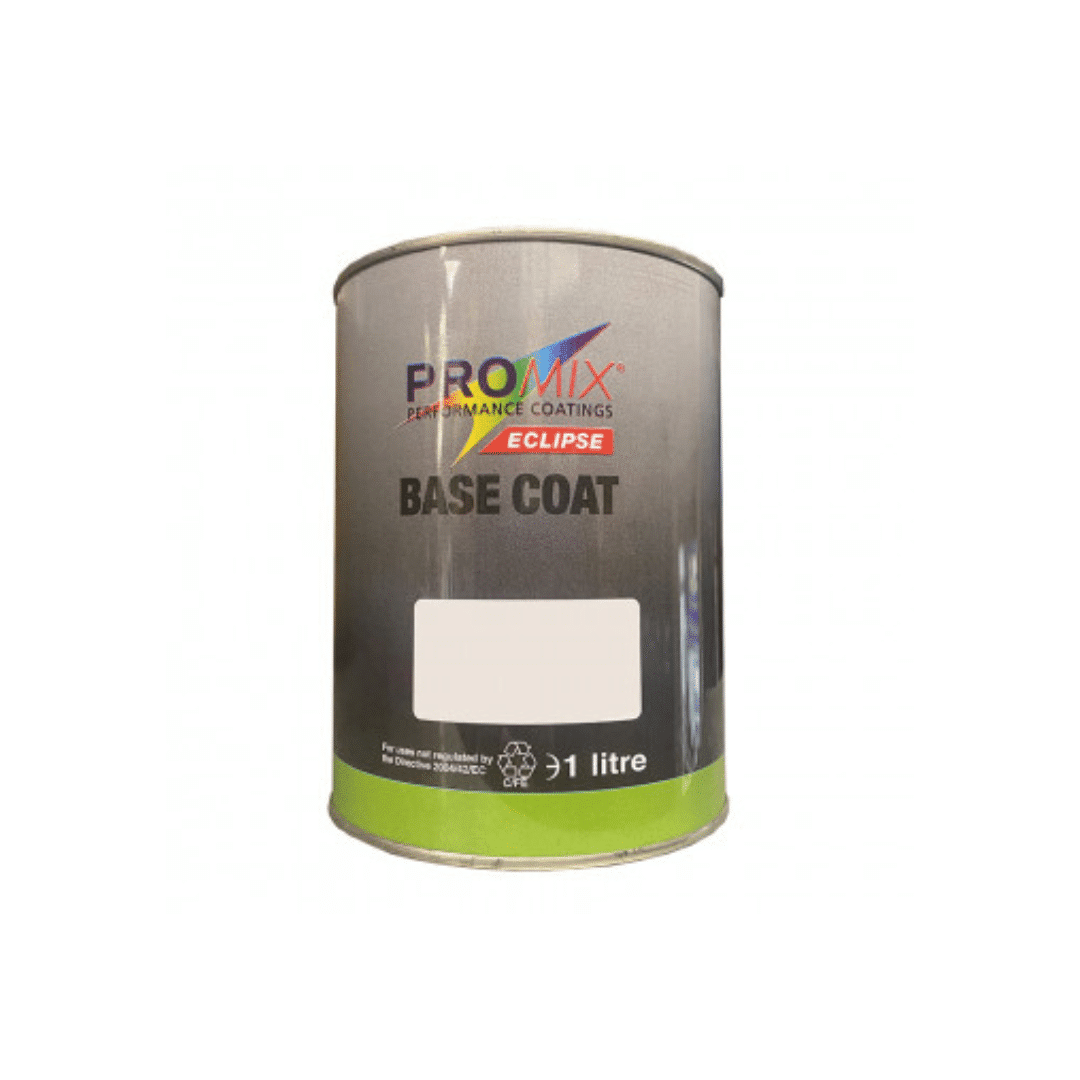

Eclipse Basecoat is a complete high quality acrylic polyurethane basecoat system. It produces plain or metallic colours based on 56 tinters including 15 pearlescent and iridescent colours and 6 xirallic. This highly pigmented system provides an economical ready-for-use coating that gives greater coverage and time savings because 2 coats are sufficient – minimal waiting time before the topcoat. Backed by Westco Tones’ colour lab, spectrometer colour matching and over 100,000 colour formulations.
| Thinning | 75% Eclipse thinners (100% for pearlescent 3-stage) |
|---|---|
| Viscosity | 18–19 sec DIN 4mm at 20°C |
| Gun set-up | Compliant 1.3–1.4mm @ 2.0–2.5 bar; HVLP 1.3–1.4mm @ 0.7 bar at cap |
| Film build | 8–12 µm per coat |
| Flash-off | 5 min between coats; wait until fully matt before clear |
| Coverage | 8–10 m²/l at 25 µm |
| Solids | 21.2–39.0% by weight |
| Tinter | B000 Clear – 1L, B001 Binder – 3.5L, B002 Metallic Additive – 3.5L, B010 Concentrated White – 1L, B020 White – 3.5L, B100 Shadow White – 1L, B110 Luminous Blue – 3.5L, B150 Radiant Blue – 3.5L, B160 Brilliant Blue – 1L, B170 Greenish Blue – 1L, B180 Reddish Blue – 1L, B210 Luminous Green – 3.5L, B240 Golden Green – 1L, B260 Lemon Green – 1L, B290 Bright Yellow – 1L, B330 Medium Yellow – 1L, B340 Transparent Yellow – 1L, B350 Oxide Yellow – 1L, B370 Orange – 1L, B380 Light Yellow – 1L, B410 Red Lumina – 1L, B420 Orange Lumina – 1L, B450 Oxide Red – 1L, B460 Bright Red – 1L, B470 Purple – 1L, B490 Fulgurant Red – 3.5L, B520 Dark Brown – 3.5L, B530 Transparent Red Oxide – 1L, B540 Oxide Transp. Yellow – 1L, B550 Ruby Red – 1L, B560 Pure Maroon – 1L, B580 Brilliant Red – 1L, B590 Grenate – 1L, B620 Pearl Lustre White – 1L, B640 Pearl Orange Dome – 1L, B660 Pearl Blue Fine – 1L, B670 Pearl Bluish Green – 1L, B680 Pearl Red Violet – 1L, B690 Pearl White Fine – 1L, B700 Pearl Copper – 1L, B708 Xirallic Copper – 1L, B710 Gold Dome – 1L, B720 Pearl White – 1L, B728 Xirallic White – 1L, B730 Pearl Gold – 1L, B738 Xirallic Gold – 1L, B740 Pearl Violet – 1L, B745 Violet Extreme – 1L, B750 Fine Russet – 1L, B758 Xirallic Red – 1L, B760 Sparkle Red – 1L, B770 Pearl Green – 1L, B775 Green-Rose Extreme – 1L, B778 Xirallic Green – 1L, B780 Pearl Blue – 1L, B788 Xirallic Blue – 1L, B790 Pearl Red – 1L, B810 Carbon Black – 3.5L, B830 Standard Black – 3.5L, B870 Deep Black – 1L, B880 Deep Jet Black – 1L, B930 Metallic Very Coarse – 3.5L, B940 Metallic Coarse – 3.5L, B948 Silver Dollar Coarse – 3.5L, B950 Metallic Fine – 3.5L, B960 Metallic Fine Bright – 1L, B970 Metallic Coarse – 1L, B980 Metallic Medium Fine – 3.5L, B988 Silver Dollar Fine – 3.5L, B990 Metallic Super Fine – 1L, B995 Metallite Aluminium – 1L, B998 Blue Metallic – 1L |
|---|---|
| System | 1K |
| Format | Liquid (Gun Applied) |
Call the trade line and quote the product code, or send us the job details.
